KIMPEX Commander WS4 Track Kit

This kit includes:

1) KIMPEX Commander Track A-Arm Kit - Can-Am (BOM1)

Attachment kit for COMMANDER track system.

• Attaches directly to your vehicle's A-ARMS.
• Necessary hardware included.
• Anti-rotation sold separately.

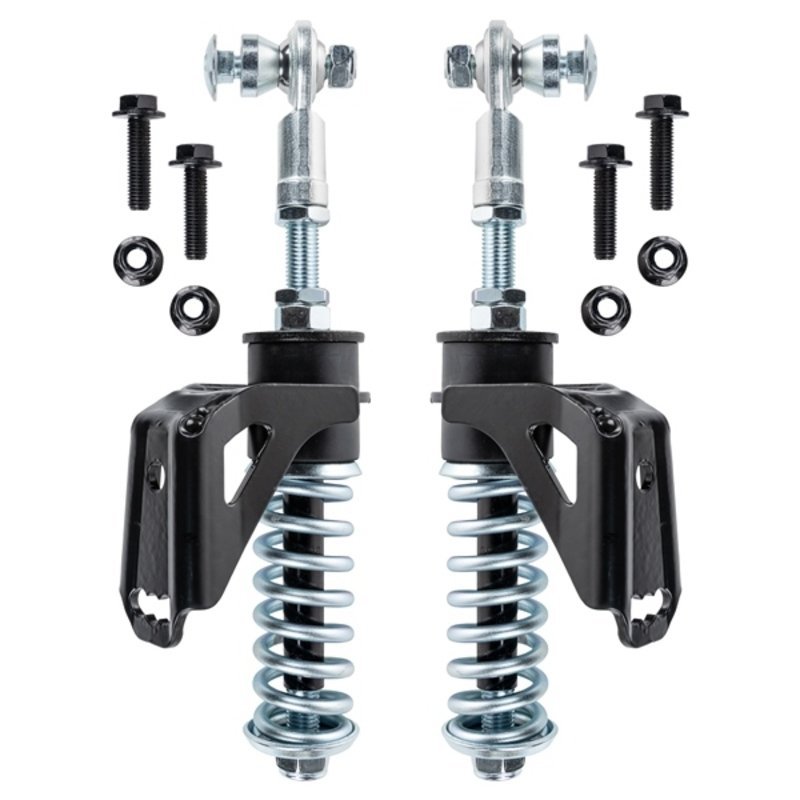

2) KIMPEX Front Anti-Rotation Kit WX4/HD4 (BOM2) For Track System

Anti-rotation kit required for use with the HD4 track system.

Please refer to the installation manual for detailed fitting instructions.

• Designed to fit your vehicle perfectly.
• All required hardware is included in the box.

Please check whether your BOM1 reference is listed below. If it is, you will need to order the corresponding front and/or rear spacer associated with your product code.

Example: BOM1 reference 374018 requires 1x front spacer 493003.

• 374018: 1x front spacer 493003
• 374026: 1x front spacer 493003
• 374073: 1x front spacer 374994
• 374505: 1x front spacer 493003 + 1x rear spacer 374994
• 374941: 1x front spacer 493003
• 374998: 1x front spacer 493003
• 375078: 1x front spacer 374994
• 375079: 1x front spacer 374994
• 375082: 1x front spacer 374994
• 375087: 1x front spacer 374996
• 375405: 2x front spacers 374994
• 375886: 2x front spacers 374994
• 375890: 1x front spacer 374994
• 375891: 2x front spacers 374994
• 375893: 1x front spacer 374994
• 375895: 1x front spacer 374994 + 1x rear spacer 374994
• 375896: 1x front spacer 374994
• 375897: 1x front spacer 374994
• 375898: 1x front spacer 374994
• 375900: 1x front spacer 493003
• 375982: 2x front spacers 493003

3) KIMPEX Rear Anti-Rotation Kit WX4/HD4 (BOM3) For Track System

Anti-rotation kit required for use with the HD4 track system.

Please refer to the installation manual for detailed fitting instructions.

• Designed to fit your vehicle perfectly.
• All required hardware is included in the box.

Please check whether your BOM1 reference is listed below. If it is, you will need to order the corresponding front and/or rear spacer associated with your product code.

Example: BOM1 reference 374018 requires 1x front spacer 493003.

• 374018: 1x front spacer 493003
• 374026: 1x front spacer 493003
• 374073: 1x front spacer 374994
• 374505: 1x front spacer 493003 + 1x rear spacer 374994
• 374941: 1x front spacer 493003
• 374998: 1x front spacer 493003
• 375078: 1x front spacer 374994
• 375079: 1x front spacer 374994
• 375082: 1x front spacer 374994
• 375087: 1x front spacer 374996
• 375405: 2x front spacers 374994
• 375886: 2x front spacers 374994
• 375890: 1x front spacer 374994
• 375891: 2x front spacers 374994
• 375893: 1x front spacer 374994
• 375895: 1x front spacer 374994 + 1x rear spacer 374994
• 375896: 1x front spacer 374994
• 375897: 1x front spacer 374994
• 375898: 1x front spacer 374994
• 375900: 1x front spacer 493003
• 375982: 2x front spacers 493003

4) KIMPEX Commander WX4 Track Kit For UTV / ATV 4/110 - 4/115 - 4/137

To install tracks on your UTV, you need:

Don’t limit yourself anymore, equip your UTV with the Commander WX4.

Push the limits of adventure with the WX4. This track system transforms your UTV to take you farther than ever, with your friends and all your gear. And it delivers an extra dose of adrenaline along the way.

Step 1

• Choose your WX4 track kit.

Step 2

• Select the proper track adapter (BOM1) depending on your UTV model.
• It is recommended to browse the website using the “Search by vehicle” tool.

Step 3

• Select the proper front anti-rotation kit (BOM2) and rear anti-rotation kit (BOM3).
• It is recommended to browse the website using the “Search by vehicle” tool.

Learn more about product design:

• 17-tooth sprocket, 431.8 mm
• Aggressive track profile
• HD tensioner: quick and easy to use
• Pronounced attack angle helps clear obstacles
• Wheels contact the track with rubber: prevents ice from sticking
• System without slider shoe for all-season performance
• Improved axle bearings for greater durability
• Triangulated frame composed of robust 2.5 in / 64 mm steel tubing

Specifications:

• Applications: 500 cc and above ATVs / light to medium UTVs
• Width: 318 mm / 12.5 in front, 356 mm / 14 in rear
• Length: 2460 mm / 97 in front, 2970 mm / 117 in rear
• Weight without mount kit: 91 lb / 41 kg front, 112 lb / 51 kg rear
• Frame material: steel
• Lug height: 25 mm / 1 in front, 33 mm / 1.3 in rear
• Drive type: internal
• Flotation surface: 6% higher at the front and 10% higher at the rear
• Ground clearance: increase of 145 mm / 5.5 in
• Speed loss: 35%
• Initial installation time: more than 3 hours
• Subsequent installation time: 1 hour

Use:

• Snow: deep, moderate, path and springtime
• Off Snow: marshland, mud, sand, dirt road and gravel

• Color: Black
